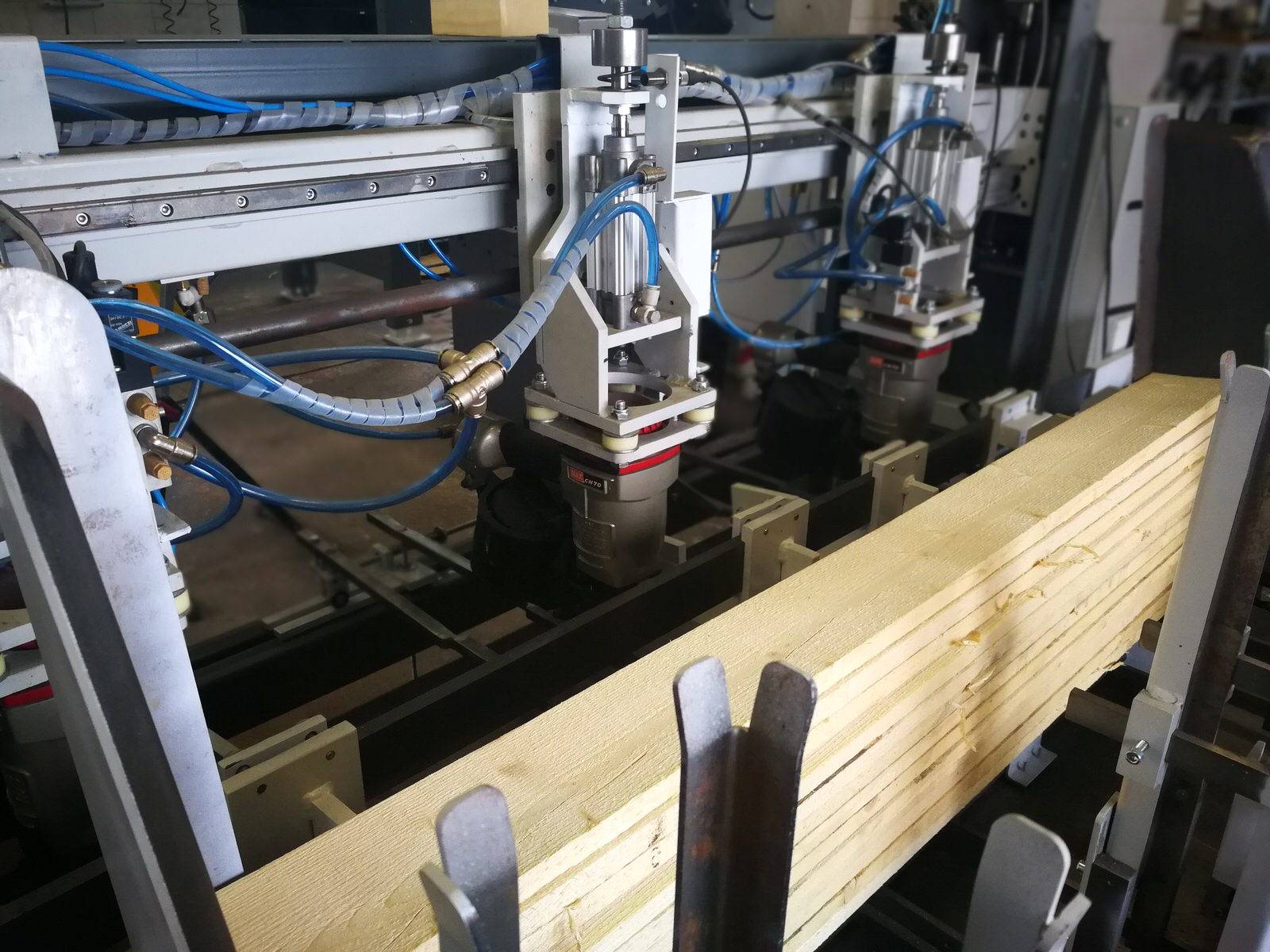

CONSISTS OF 3 PISTOLS THAT AUTOMATICALLY DRIVE NAILS DIAGONALLY OR STRAIGHT, DEPENDING ON THE SETTINGS OF THE PISTOL MOVEMENT, WHICH IS ADJUSTED VIA A TOUCHSCREEN.

THE “MAGAZINE” RANGE FOR CUBES IS ADJUSTABLE FROM MIN 50 X 50 X 50 MM TO MAX 120 X 120 X 120 MM.

THE “MAGAZINE” RANGE FOR BOARDS AUTOMATICALLY PLACES THE BOARD IN THE STORAGE POSITION, PRIORITIZING THE MAGAZINE RANGE.

BOARDS ARE INDIVIDUALLY PLACED IN THE STORAGE POSITION. MOVEMENT IS CARRIED OUT BY ALUMINUM STRIPS THAT MOVE CUBES AND BOARDS TO THE DESIRED POSITION FOR NAILING.

THE MACHINE ACHIEVES 5-9 LEGS PER MINUTE. GREATER AUTOMATION IS POSSIBLE BY ADDING A CUTTER WITH AUTOMATIC MOVEMENT AND A TRANSPORT MODULE FOR LEGS.

THIS WAY, WE WILL ACHIEVE THE HIGHEST LEVEL OF PRODUCTIVITY WITH THE LEAST NUMBER OF STAFF.

ALL MACHINES AND THE ENTIRE WORK SYSTEM ARE MANUFACTURED IN ACCORDANCE WITH YOUR NEEDS AND WISHES.

TECHNICAL SPECIFICATIONS

LENGTH: 2000 MM

WIDTH: 2000 MM

HEIGHT: 850 MM

WEIGHT: 1300 KG

CYCLE TIME: APPROXIMATELY (7) LEGS PER MINUTE

CAPACITY/DIMENSIONS OF PALLETS: 50×50…120×120

CUBE LENGTH OF PALETTE: MIN-400 MM…….MAX 1300 MM

MACHINE ADJUSTABILITY: FULL ADJUSTABLE SETTING

LENGTH ADJUSTMENT FOR PLACING CUBES/BOARDS IN POSITION FOR NAILING: AUTOMATIC NAILING

NAIL USAGE: AUTOMATIC USE OF PISTOL

BRIDGE WITH PISTOLS: MANUALLY ADJUSTABLE IN HEIGHT

AIR REQUIREMENTS: 3/4 “, PREFERRED DEDICATED COMPRESSOR: 1.5 KW

INSTALLATION: PLUG AND PLAY

PISTOLS: NOT INCLUDED IN THE MACHINE PRICE
