WE PRESENT a universal, adjustable pallet production table with pneumatic clamping of support elements. The pneumatic table allows for pallet production with a single operator.

We start by setting the pallet dimensions. The table can be easily adjusted to the desired size. You can specify: the number of blocks, boards, and gaps between them. Below we present the following stages of pallet production. Place wooden blocks in fixed positions. Align and clamp them with pneumatic pressure or manually (control via valve). Place vertical boards on the blocks. Then place horizontal boards. Drive in the elements with a hammer at 80 mm and a hammer at 32-38 mm, depending on the material thickness. Release the blocks if using the pneumatic table. We start with the pneumatic lift for easier rotation of the pallet to the other side.

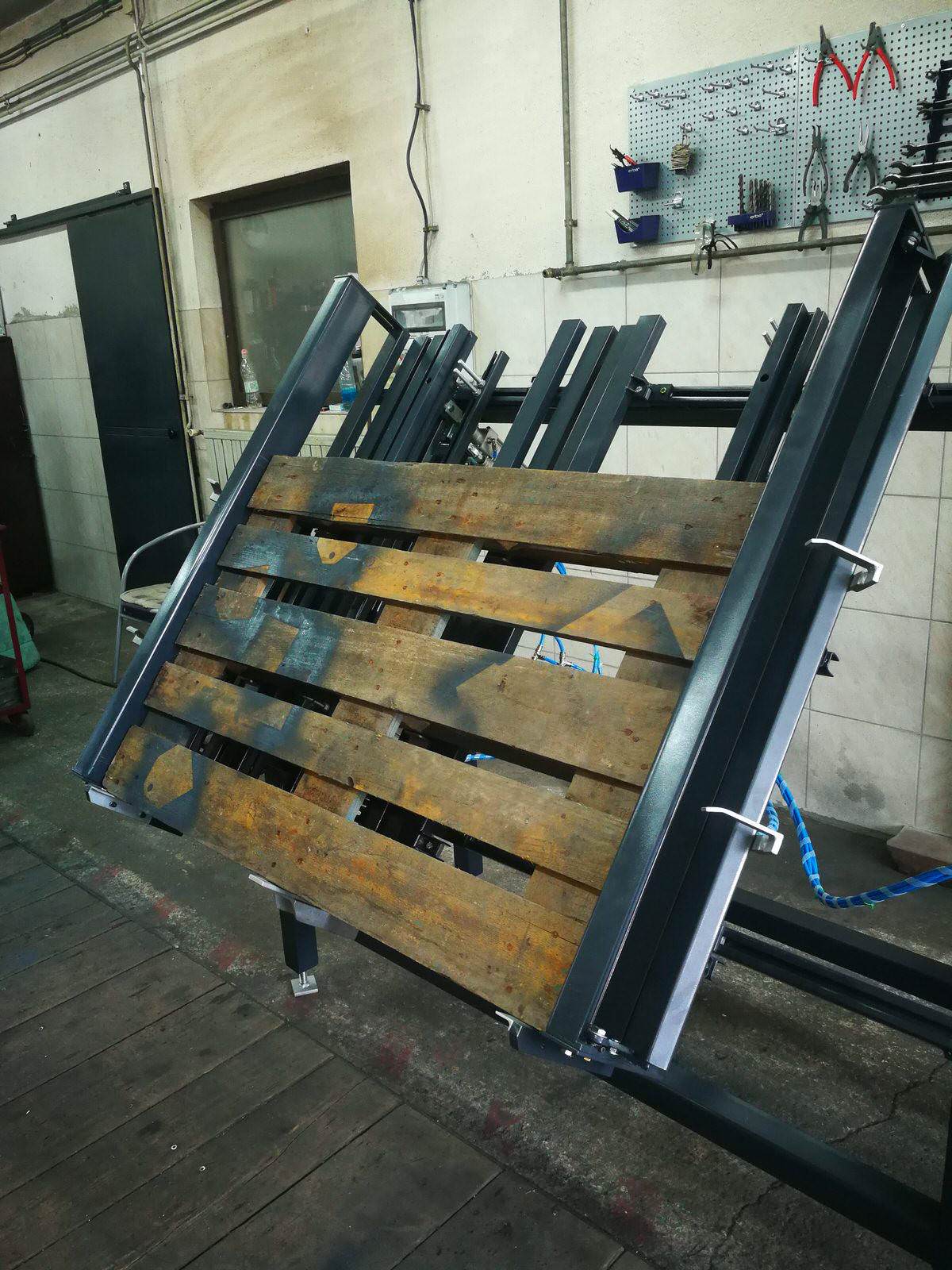

OPTION: PNEUMATIC TABLE FOR PALLET ROTATION

• Lift the pallet rotation table.

• Rotate the pallet.

• Place horizontal boards and nail them.

• The final phase is the pneumatic lifting of the finished pallet.

OPTION: PNEUMATIC TABLE FOR PALLET EJECTION

• The average production efficiency is 200-210 pallets per shift with the service of just one employee.

Technical Specifications:

• Weight: 370 kg

• Operating pressure up to 8 bar

• Material: structural steel

Working Area:

• Length: 1500 mm (width 120 mm larger than other products of this type available on the market) – NEW

• Width: 1500 mm

External Dimensions:

• External width: 1750 mm

• Table height: 1338 mm

• Total height – mast: 2125 mm

Advantages of the DK-1500 Table:

• 200 pallets per shift with one employee

• Working area of only 2.9 m², integrated, ergonomic workstation

• Stand supported by one employee

• Increases work efficiency

• Fast conversion from one size to another significantly saves time

• Pneumatic clamping of supports OPTION

• Pneumatic ejection

Includes:

• Steel construction with pneumatic equipment, valves, actuators, etc.

• Control levers: 3 pcs.

• 1 x air preparation unit with pressure regulator and oil separator – allows pressure adjustment for both nails

Options: Available table types: DK-2300; DK-2800; DK-3300
