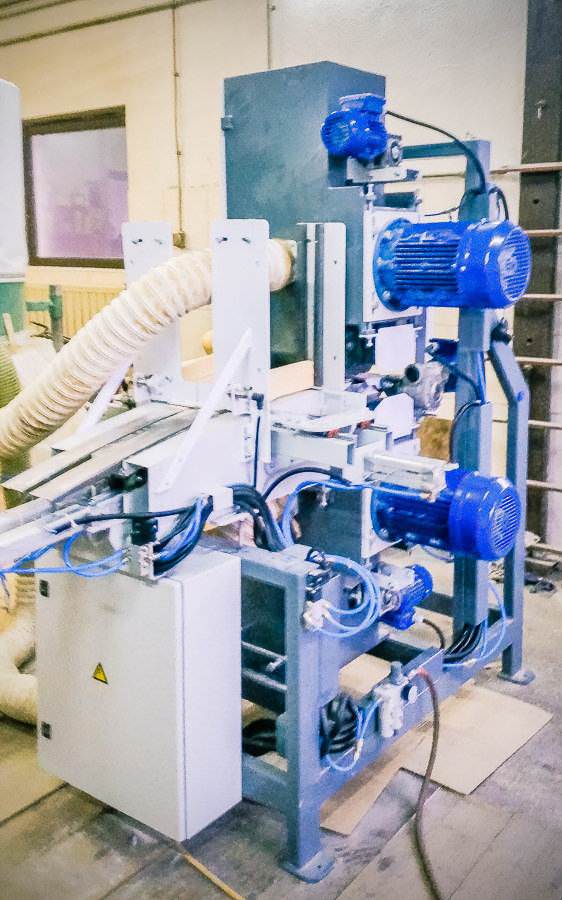

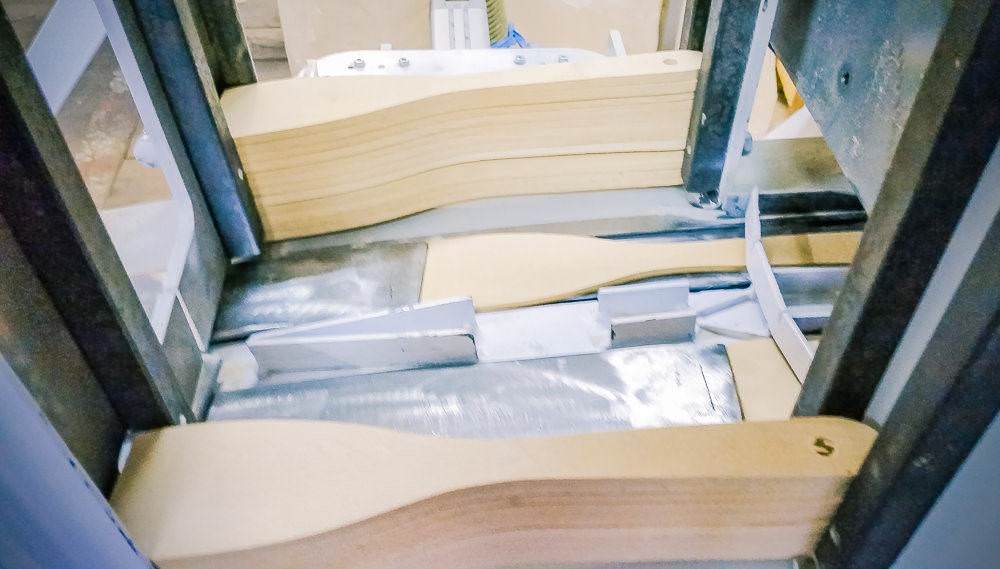

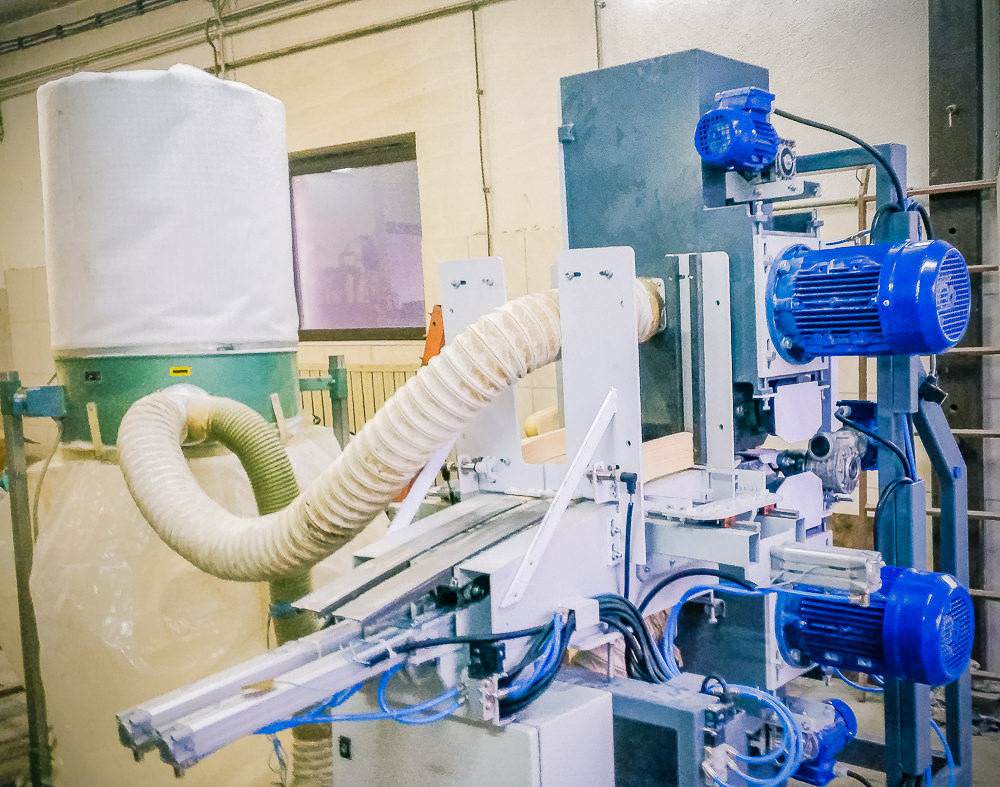

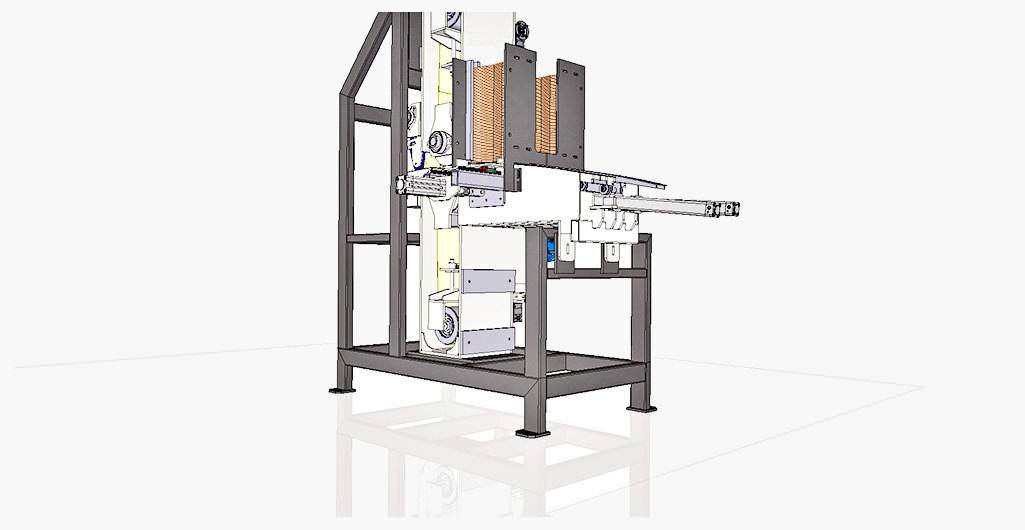

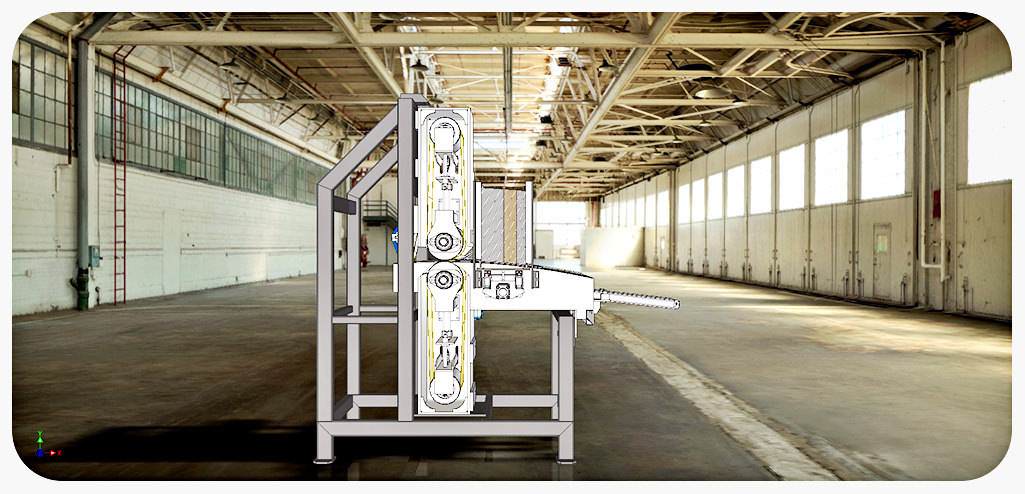

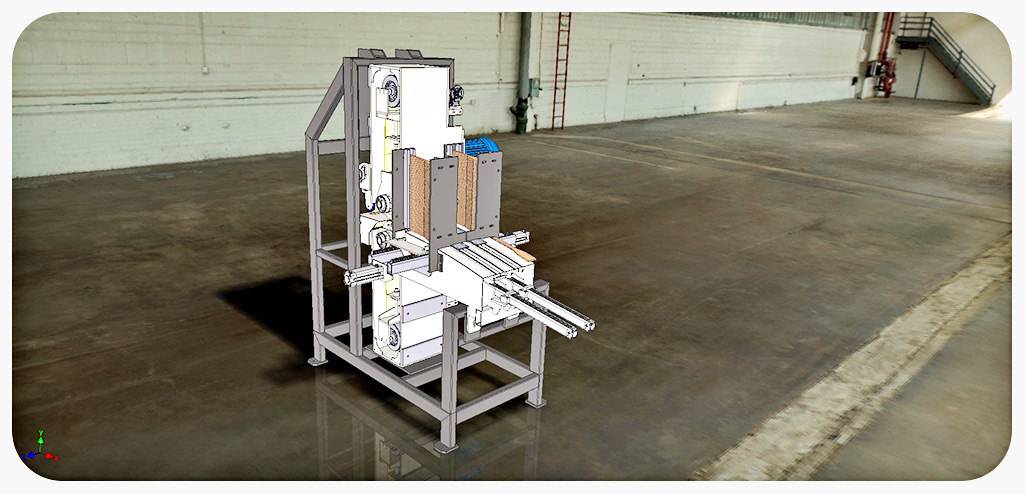

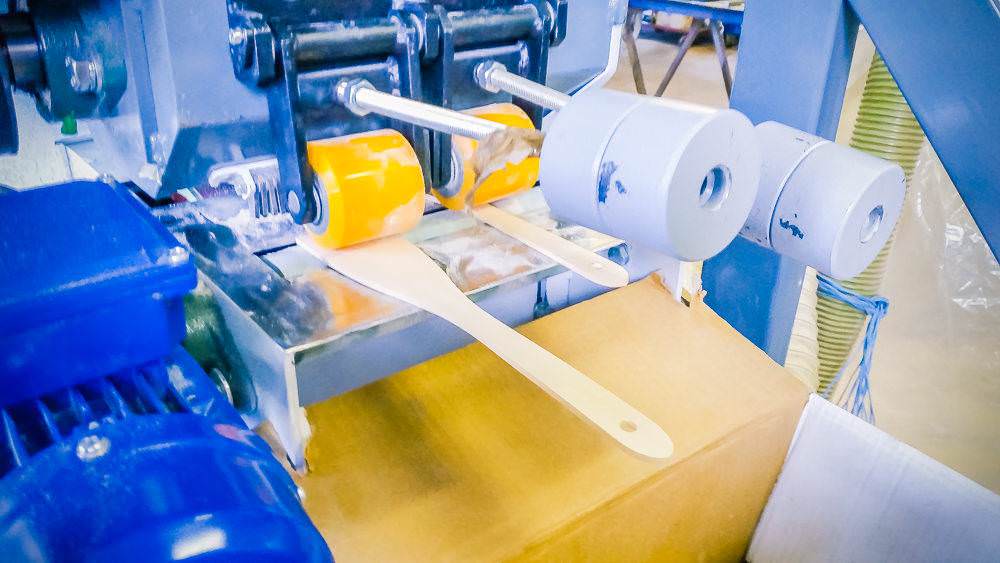

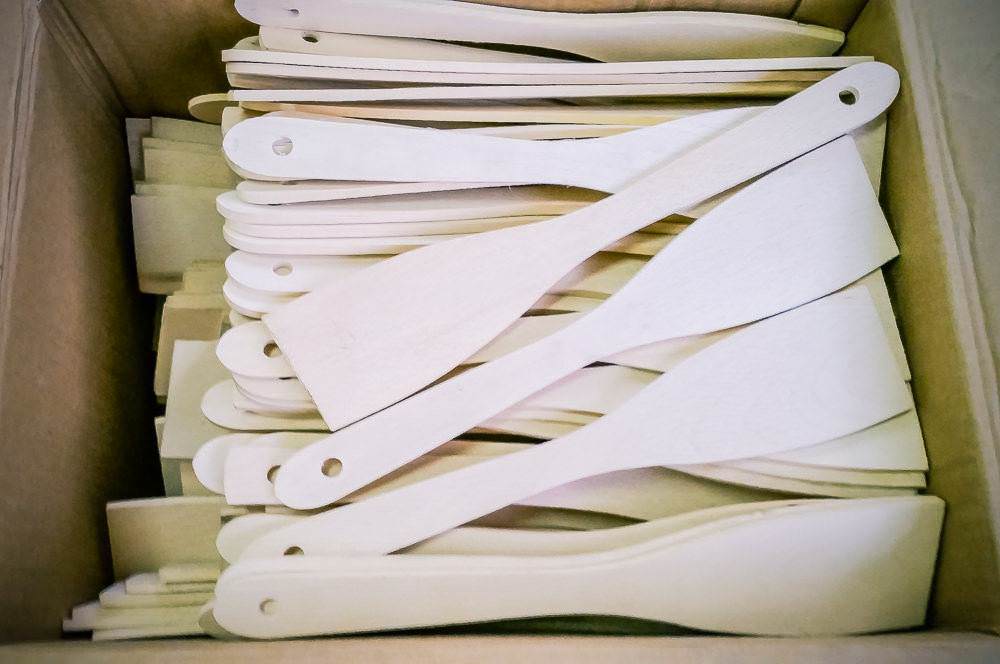

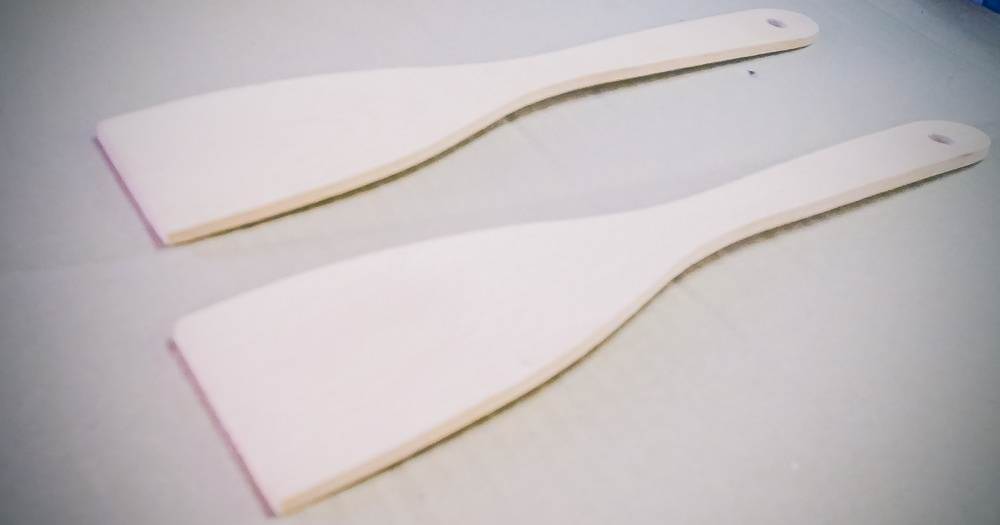

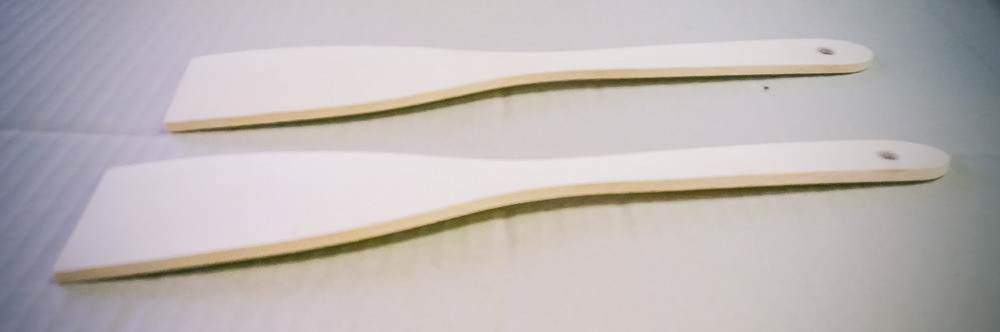

GRINDERS OF THE MK SERIES ARE INTENDED FOR GRINDING UNFLOAT ELEMENTS OR CURVED WOODEN BOARDS, SUCH AS SPATULAS (WOODEN PLATE SPOON, COOKER). IN ADDITION, WE OFFER THE MANUFACTURE OF GRINDING UNITS FOR MOUNTING ON ALREADY EXISTING MACHINES, WHICH GIVE YOU THE POSSIBILITY OF PERFORMING ANOTHER OPERATION.

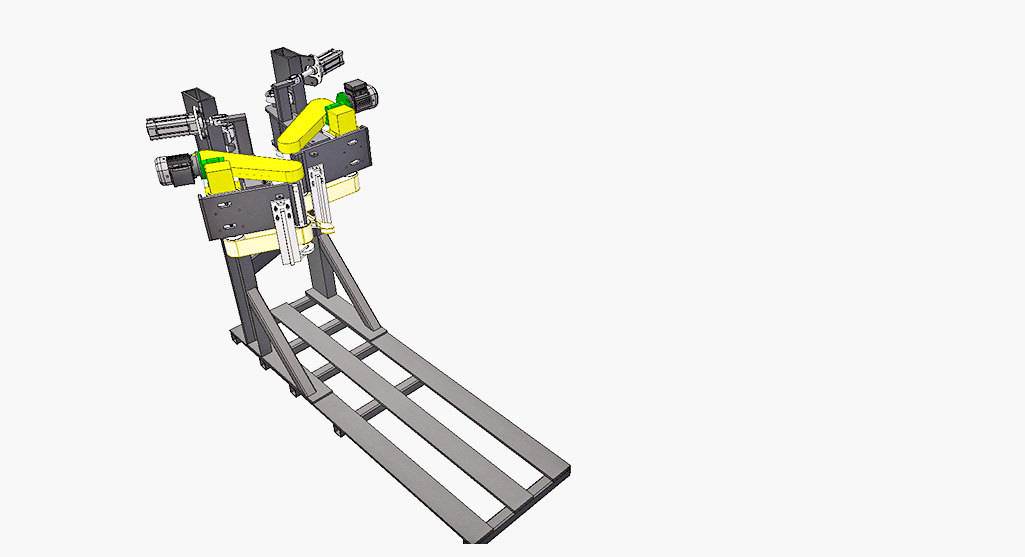

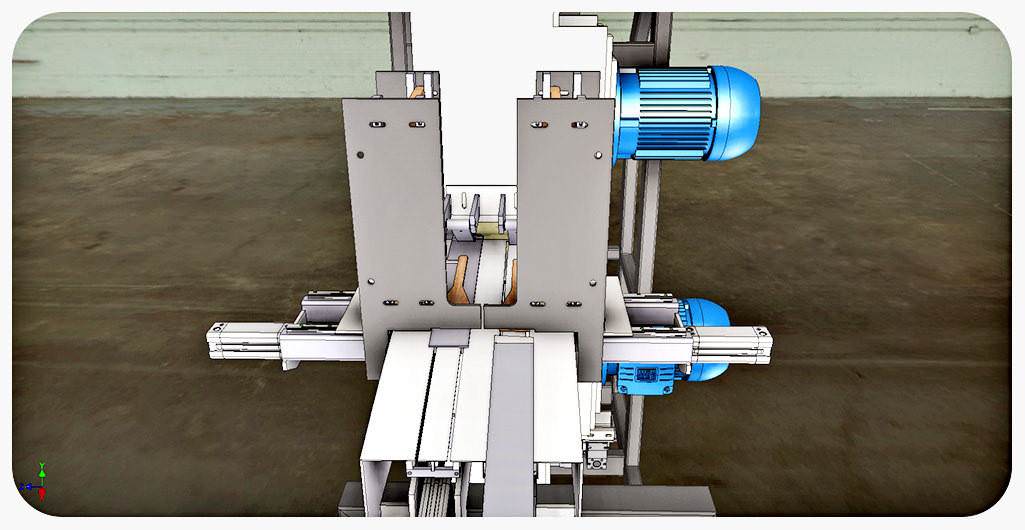

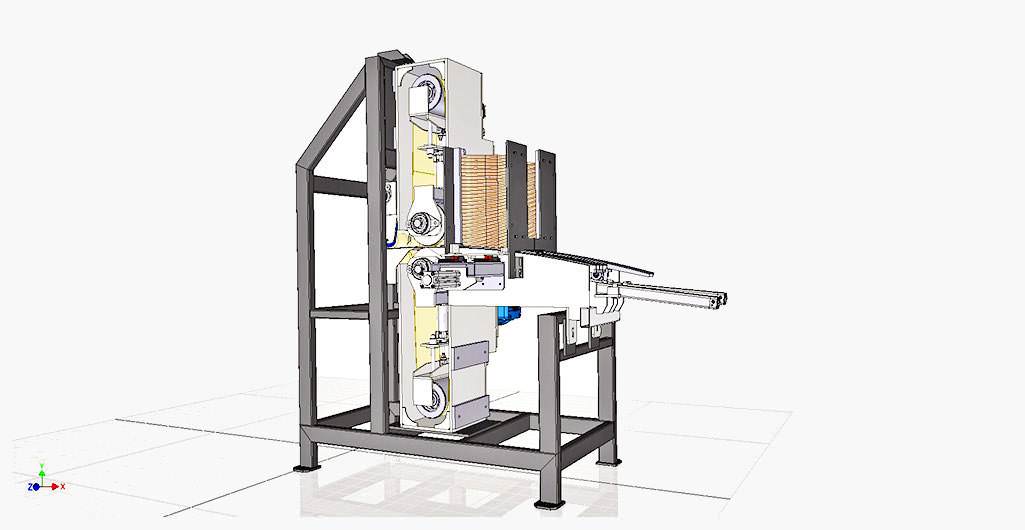

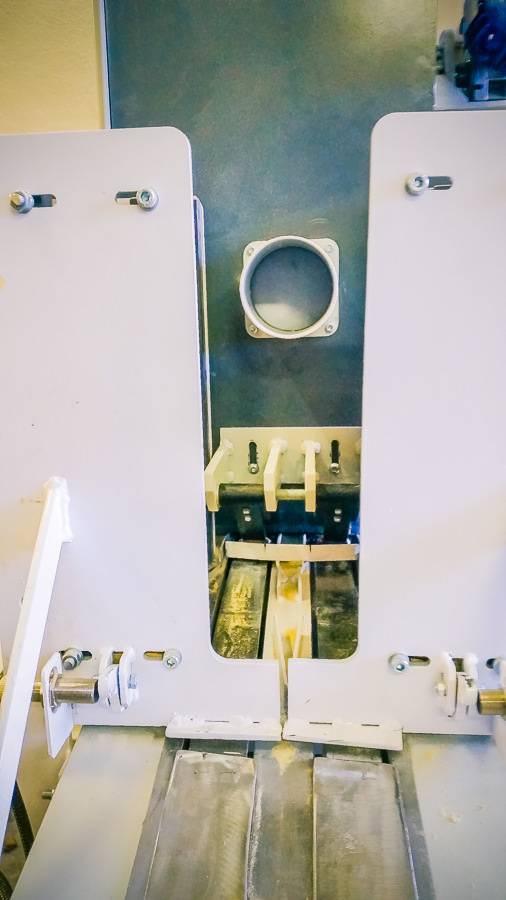

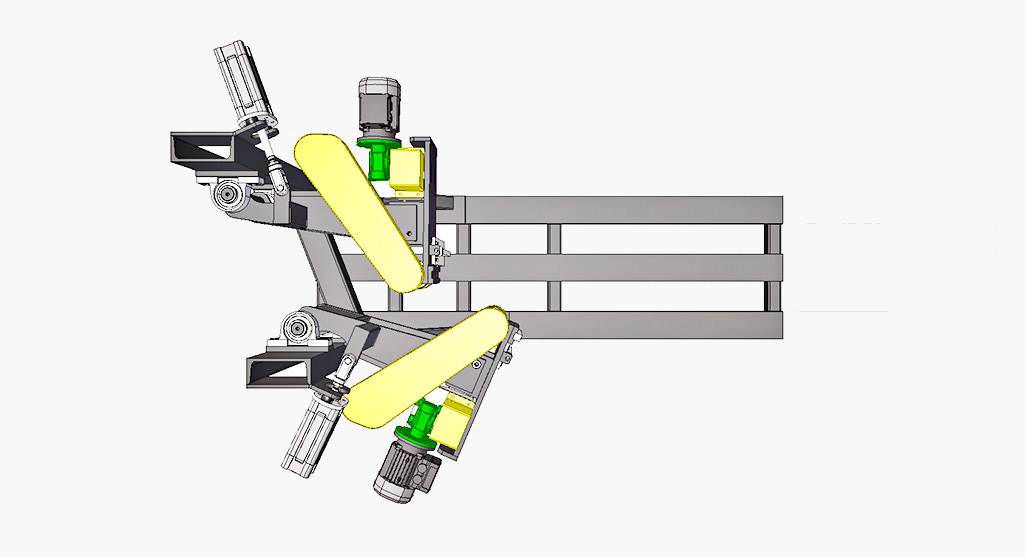

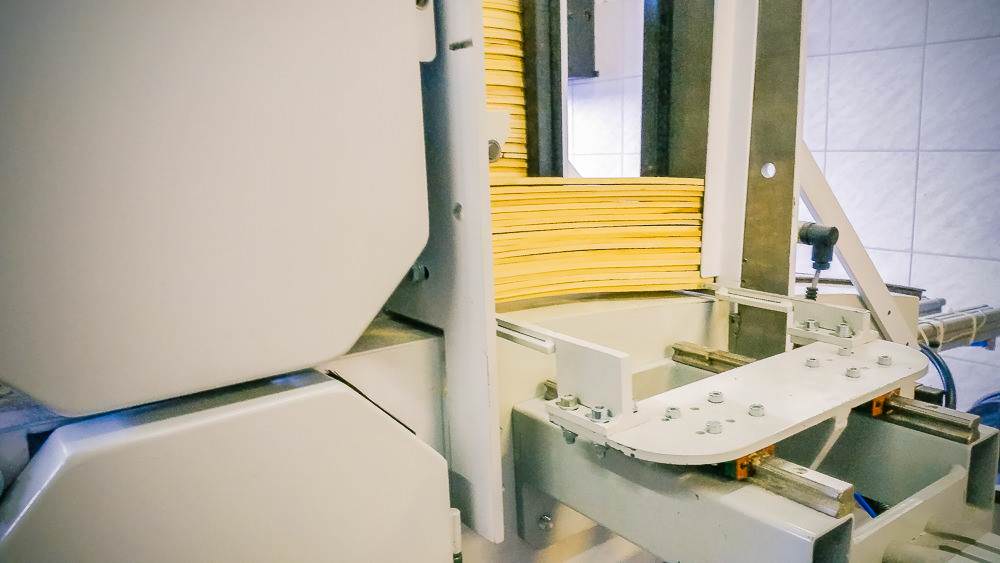

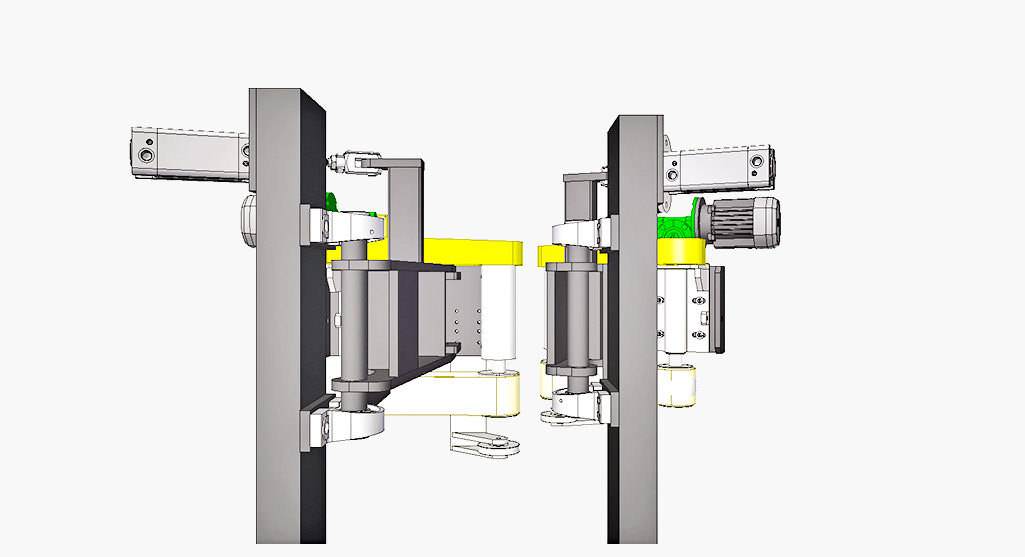

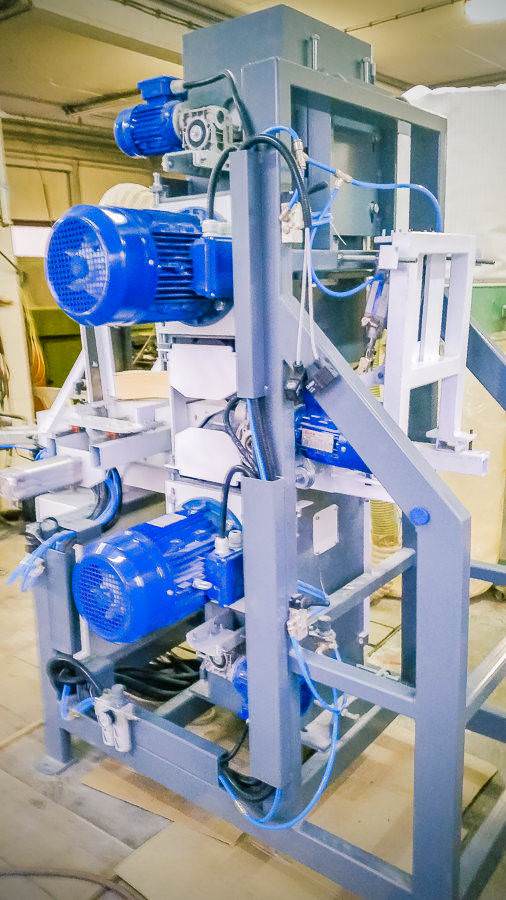

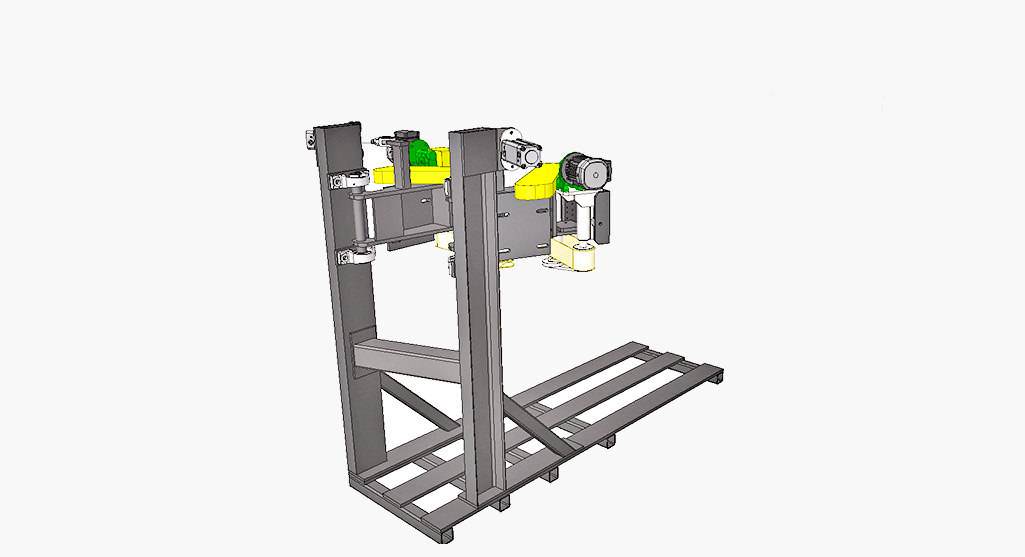

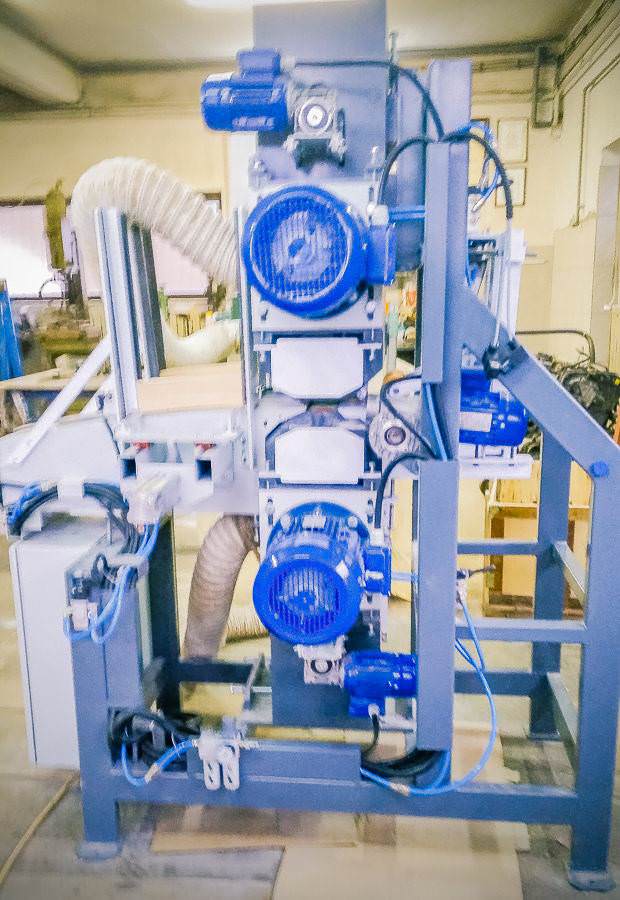

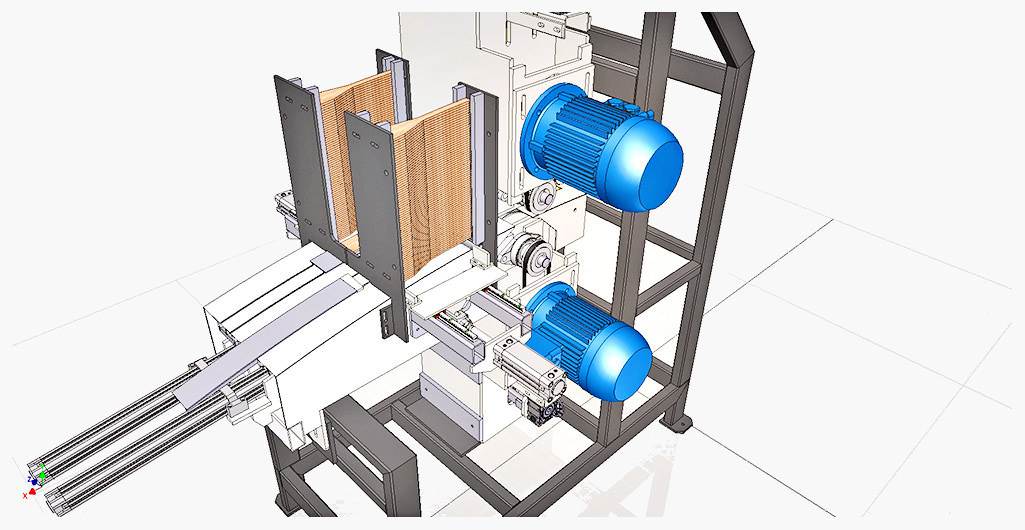

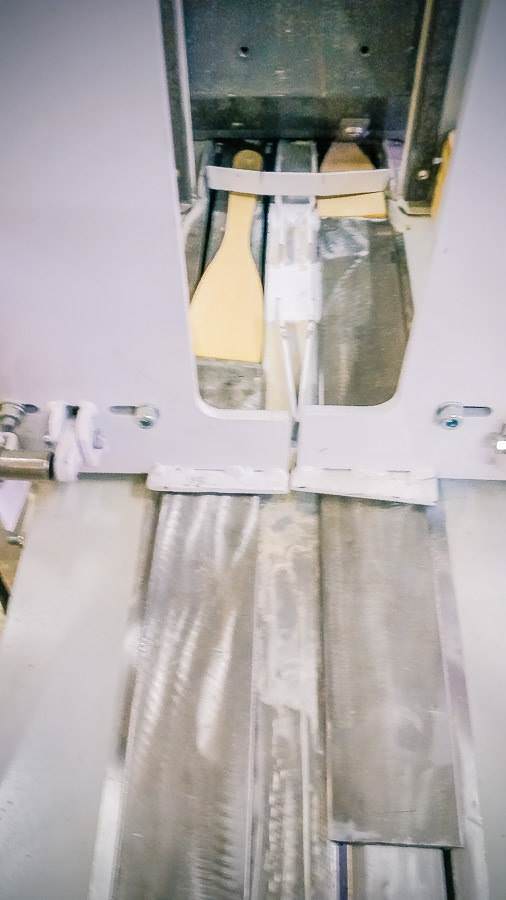

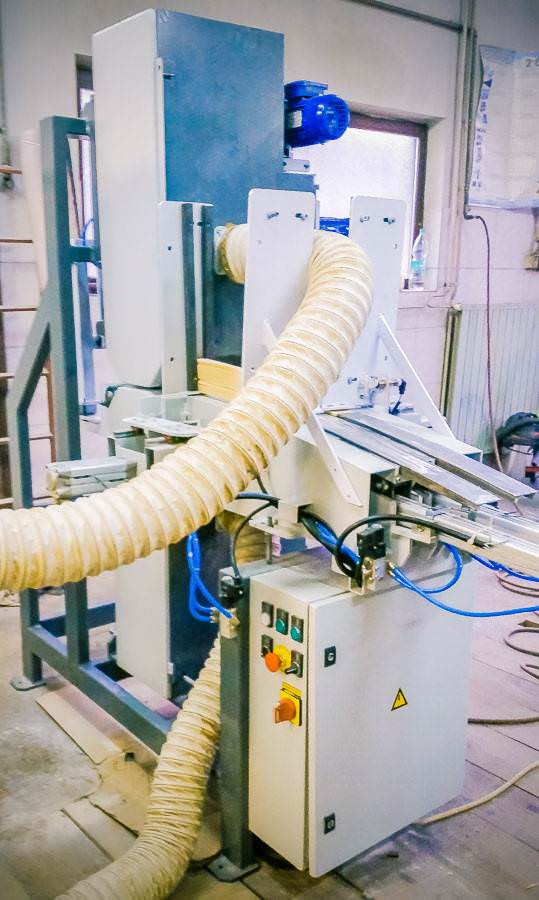

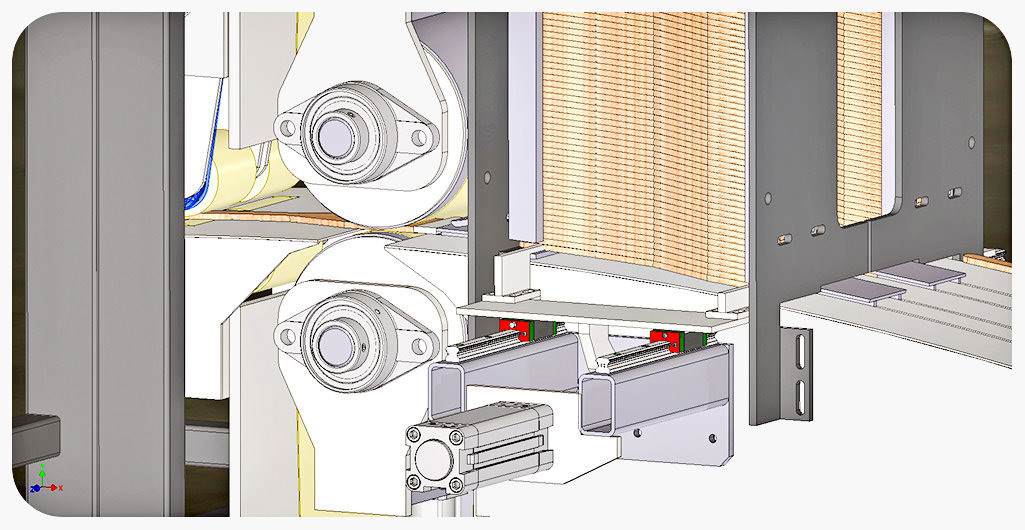

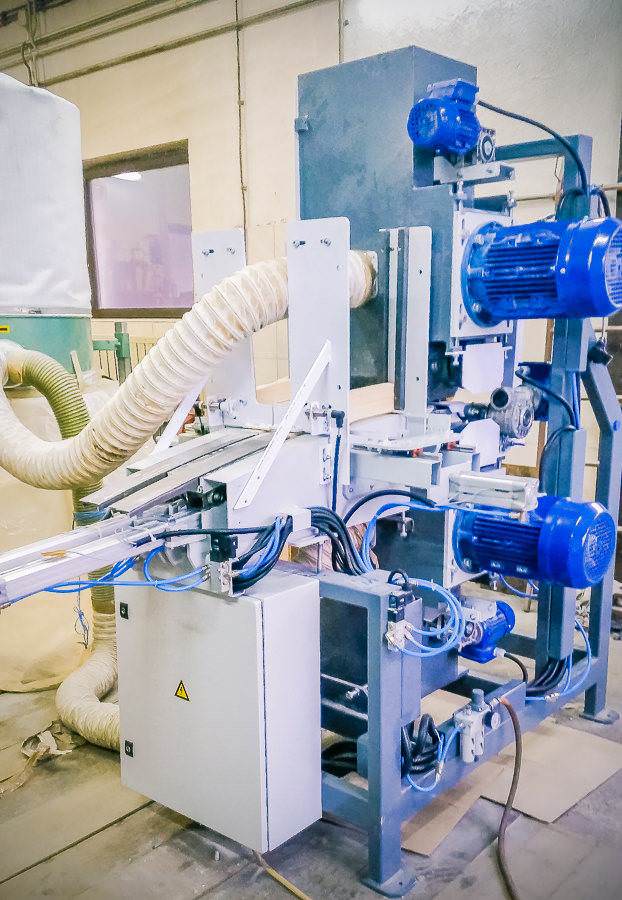

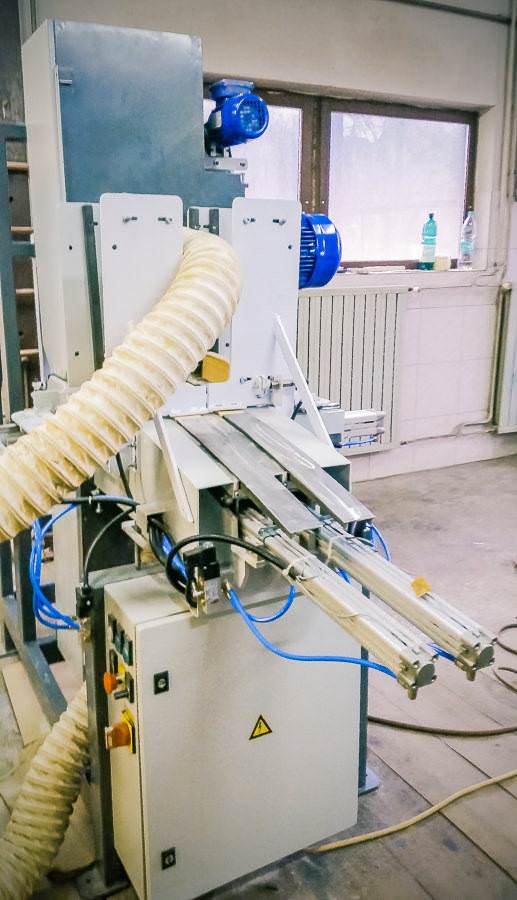

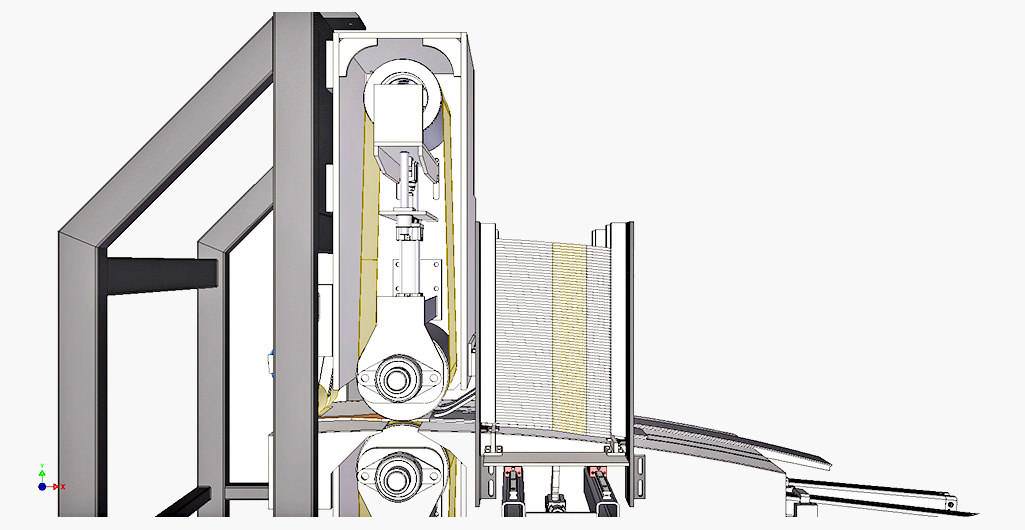

GRINDERS ARE VERSION WITH DOUBLE GRINDING UNITS. THE GRINDING UNITS ARE EQUIPPED WITH ELECTRIC MOTOR SILENCER OF THE BELT AND AUTOMATIC TENSION OF THE GRINDING BELT. FEEDING OF WOODEN ELEMENTS INTO THE GRINDER CAN BE PERFORMED WITH THE HELP OF FEEDING MECHANISMS IN THE PNEUMATIC CONSTRUCTION WITH A FEEDING TABLE, IN WHICH THE WORKPIECE IS MOVED THROUGH THE GRINDER, IT IS ALSO POSSIBLE WITH PRESSURE ROLLERS OR SOME OTHER OPTION, ADAPTED TO YOUR NEEDS.

WE CAN SET THE STATE SO THAT WE ENABLE THROUGH EXIT OR RECEIVING THE PROCESSED, YOU. LATERAL MOVEMENT OF THE WORKPIECE ON THE TAPE OR FROM DIRECTLY FROM THE STATE, IN WHICH THE MOVEMENT MOVES THE WORKPIECE FROM THE STATE. GRINDERS ARE SINGLE-SIDED OR DOUBLE-SIDED, WITH WHICH WE CAN GRIND TWO WORKPIECES AT THE SAME TIME WITH LITTLE DAMAGE. MK SERIES GRINDERS ACHIEVE VERY HIGH CAPACITY.

FEATURES:

• DOUBLE FLAT, DOUBLE FEED

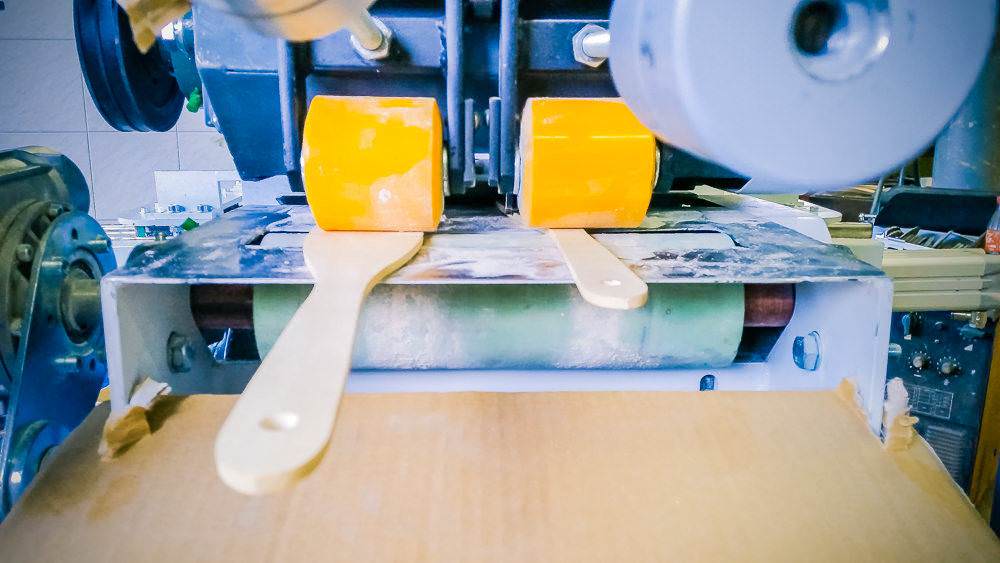

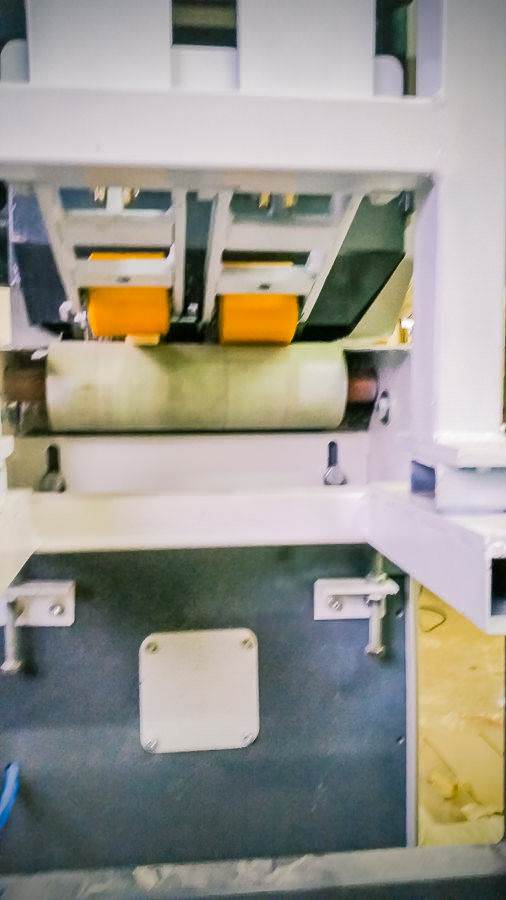

• LOWER AND UPPER ROLLER OSCILLATION

• WHEEL DIAMETER: 240 MM

• ADJUSTABLE SPEED OUTPUT ROLLER

• ADJUSTABLE FRV FEED SPEED

• BELT WIDTH: 200 MM

• ATTACHING POWER: 9.0 KW

• CAPACITY: 1450 PCS /HOUR

• MACHINE WEIGHT: 1370 KG
